Aperçu /Produits/Câble optique de fibre de verre/D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors

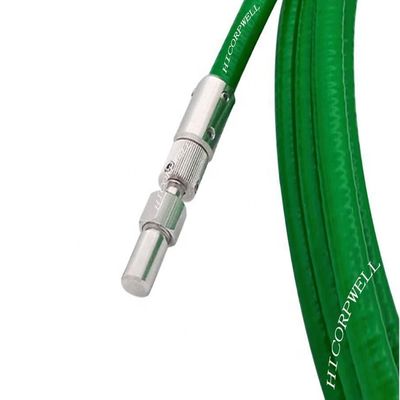

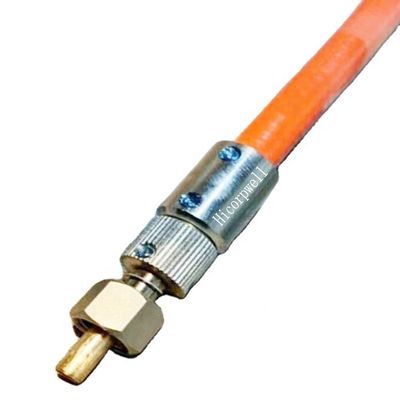

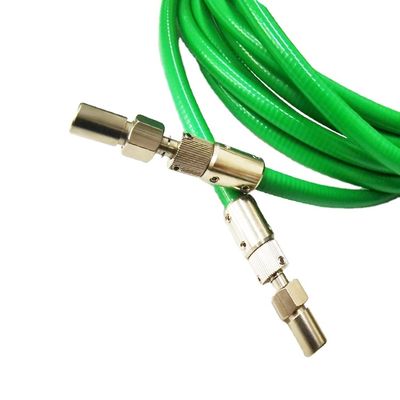

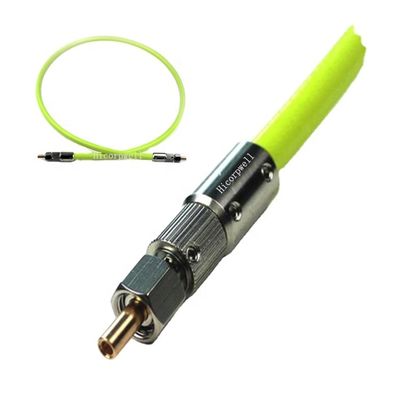

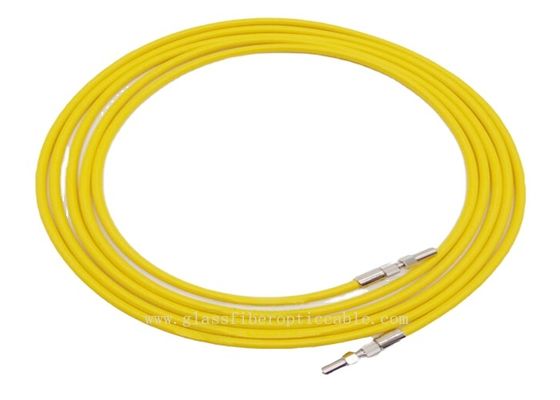

D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors

1
MOQ
$238.98-262.72
Prix
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Diamètres de noyau de fibre: 200 μm, 300 μm, 400 μm, 600 μm, 800 μm
Longueur de câble: 3m, 5m, 10m, 20m (personnalisable)
Matériau de base: Quartz pur (faible OH)
Revêtement: Matériau de quartz dopé
Ouverture numérique: 0,22
Longueur d'onde de fonctionnement: 400-2400 nm
Diamètre du tube de protection: 8 mm
Diamètre de revêtement: 500 μm, 750 μm
Diamètre de revêtement: 780 μm, 1 100 μm
Type de fibre: Fibre à échelon d'indice
Efficacité de transmission: > 90%
Puissance maximum de laser: 600W
Type de connecteur: D80 avec saphir
Dissipation de chaleur: Viroles en alliage de cuivre
Taille de l'emballage: 25X20X1cm
Mettre en évidence:

200μm to 800μm Core Diameters D80 Fiber Optic Cable

,

Sapphire and Air Gap Protection High-Power Laser Fiber

,

Precisely Polished D80 Fiber Connectors Multimode Fiber Cable
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: Hicorpwell
Numéro de modèle: D80
Conditions de paiement et expédition
Description de produit
D80 High-Power Laser Fiber Cable
1500μm/1000μm D80 3M fiber cable core diameter with active cooling for high-power laser applications.
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 0 D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 1
Product Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts with over 90% transmission efficiency. Designed for fiber-coupled laser systems in the 400-2400 nm wavelength range, it's ideal for high-power semiconductor, solid-state, and fiber lasers.
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 2
Key Features
  • Sapphire and Air Gap Protection for enhanced durability
  • Precisely Polished D80 Fiber Connectors
  • Step-index Fiber optimized for VIS-NIR applications
  • 0.22NA as standard (others available on request)
  • High quality stainless steel armored jacket
  • Advanced non-adhesive process for improved heat dissipation
Technical Specifications
Product Model (μm) ST200E ST300E ST400E ST600F
Core Diameter (μm) 200 300 400 600
Cladding Diameter (μm) 500 500 500 750
Coating Diameter 780 780 780 1100
Core Material Pure quartz (Low-OH)
Cladding Material Doped quartz material
Numerical Aperture (NA) 0.22
Operating Wavelength (nm) 400-2400
Length (m) 3, 5, 10 (default 5m, customizable)
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 3 D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 4
Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Why Choose Our D80 Fiber Cables?
Our D80 fiber cables use step-index double-clad fibers and ferrules made from heat-conducting copper alloys for optimal laser transmission. Available in core diameters from 200μm to 800μm, they're engineered for superior heat dissipation in high-power applications.
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 5 D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors 6
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a factory verified by TUV.
Q: What is your delivery time?
A: Samples: 3-5 working days. Formal orders: 7-10 working days.
Q: Do you provide OEM service?
A: Yes, we can print your logo or label on products or packaging.
Q: How do you guarantee quality?
A: All products undergo 100% testing before shipment under our quality management system.
Click to contact us for more details and a competitive quotation
