High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks

1
MOQ
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Diamètre du noyau de fibre: 200 μm, 300 μm, 400 μm, 600 μm, 800 μm
Matériau du noyau de fibre: Silice fondue de haute pureté (Low-OH)
Type de fibre: Fibre à indice échelonné en standard ; Fibre à grade d'indice sur demande
Ouverture numérique: 0,22 en standard, autres sur demande
Longueur d'onde de fonctionnement: 400-2400 nm
Diamètre du tube de protection: 8 mm
Longueur du câble: 3, 5, 10, 20 m (personnalisable)
Diamètre de revêtement: 500 μm, 750 μm
Diamètre de revêtement: 780 μm, 1 100 μm
Matériau de base: Quartz pur (faible OH)
Revêtement: Matériau de quartz dopé
Deux revêtements numériques: NA 0,37 OU NA 0,46
Efficacité de transmission: > 90%
Puissance maximum de laser: 600W
Taille de l'emballage: 25X20X1cm
Mettre en évidence:

Active Cooling High Power Laser Fiber Cable

,

D80 Connectors High Power Laser Fiber Cable

,

4G Wi-Fi 3G Networks Compatible High Power Laser Fiber Cable
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: Hicorpwell
Numéro de modèle: D80
Conditions de paiement et expédition
Description de produit

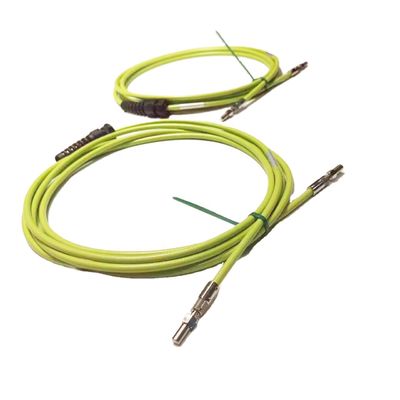

High Power Laser Fiber Cable with Active Cooling D80
Precision-engineered fiber optic cable with standard connectors compatible with 4G Wi-Fi and 3G networks, designed for high-power laser transmission up to 600W.
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 0 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 1
D80 Fiber Cable Features
The Hicorpwell D80 fiber features precision ground end faces, large core diameter, air gap technology, and sapphire D80 connectors. Capable of stable transmission exceeding 90% efficiency for high-power laser applications up to 600W.
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Two cladding numerical(NA) NA 0.37 OR NA 0.46
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default length is 5 meters, customizable)
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 2 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 3 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 4
Technical Specifications
Specification Details
Fiber Core Diameter (μm) 200, 300, 400, 600, 800
Fiber Core Material High purity fused silica (Low-OH)
Fiber Type Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA) 0.22 as standard, others on request
Operating Wavelength (nm) 400-2400
Protection Tube Diameter (mm) 8
Cable Lengths (m) 3, 5, 10, 20, etc. (customizable)
Key Features
  • Sapphire and Air Gap Protection for enhanced durability
  • Precisely Polished D80 Fiber Connectors for optimal transmission
  • Step-index Fiber Optimized for VIS-NIR wavelengths
  • 0.22NA as standard with other configurations available
  • No-glue technology for improved heat dissipation and service life
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 5 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 6
Applications
  • High power laser transmission systems
  • Laser welding and cutting operations
  • Precision laser marking
  • Atmospheric spectrum measurement
  • Industrial laser cleaning applications
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days. Formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs must be covered.
Q5: How do you guarantee quality?
A: All products undergo 100% testing before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Orders: 30% deposit, 70% balance before shipment.
Company Profile
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 7 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 8
Our Hicorpwell Team
High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 9 High Power Laser Fiber Cable with Active Cooling and D80 Connectors for 4G Wi-Fi 3G Networks 10
