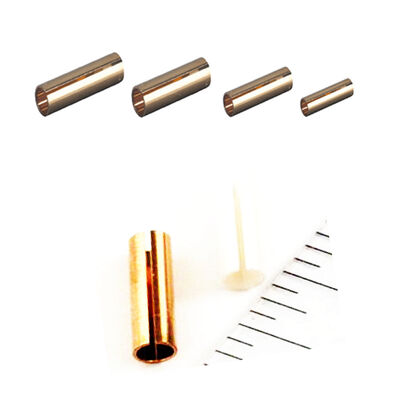

Phosphor bronze sleeves provide moderate precision through stamping and turning processes, with metallic properties that allow minor dimensional adjustments to accommodate tolerance variations. This ensures broad compatibility at a lower cost compared to ceramic alternatives.

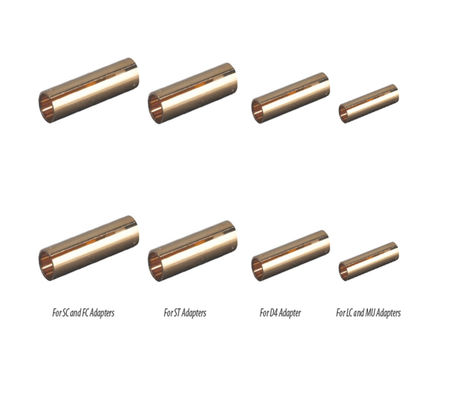

In fiber optic copper sleeve protector design and selection, ceramic sleeves are not preferred, while metal sleeves such as phosphor bronze are often used due to fundamental differences in material properties, functional positioning, and application scenario requirements.
| Parameter | Value |
|---|---|
| O.D. Size | SC: 2.499±0.0005, LC: 1.249±0.0005 |
| I.D. Size | Customized |
| Concentricity | SM ≤1.0μm, MM ≤4.0μm |
| Length | SM 10.5±0.05, MM 10.5±0.1, LC: 6.4+0.1 |
| Ferrule Type | SC/LC/APC/Customized |
| Material | Zirconia Dioxide |
| Endface | Conical type/Step type/Plane type |
| Color | White |
| Sample | Free |
| Type | SC | LC | MU | APC | Unit |
|---|---|---|---|---|---|
| O.D. Size (mm) | SM: 2.4999±0.0005 MM: 2.4999±0.001 |
SM: 2.4999±0.0005 MM: 1.249±0.001 |
1.249±0.0005 | 2.499±0.0005 | φd±0.0005 |
| I.D. Size (mm) | SM: d±0.001 MM: d±0.002 |
SM: d±0.001 MM: 0.126±0.004 |
d±0.001 | d±0.001 | d±0.001 |
| Concentricity (μm) | SM: ≤1.0 MM: ≤4.0 |
SM: ≤1.0 MM: ≤4.0 |
≤1.0 | ≤1.0 | Customized |
| Length (mm) | SM: 10.5±0.05 MM: 10.5±0.05 |
6.4+0.1 | 6.5±0.05 | 10.5±0.05 | L±0.05 |
Ferrule is the most important component of fiber connectors and fiber patch cords. Made from zirconia ceramic material, these ferrules offer low insertion loss, remarkable strength, small elasticity coefficient, easy control of product characteristics, and strong resistance to environmental changes.
Outer diameter ceramic ferrule sizes are φ2.5mm for ST, FC and SC fiber connectors, and φ1.25mm for MU and LC fiber connector versions, with precision tolerance levels of ±0.0005mm for single mode and ±0.001mm for multimode applications.
